Our engineering activity includes system integration works, electrical engineering, system plan developing and creating logic designs.
Our professional colleagues are registered at the Hungarian Chamber of Engineers. We consider it very important to create high standard comprehensive documentation about the designed systems. Our engineering and documentation work is supported by the latest EPLAN Professional CAD system.
The most important aspect when choosing our equipment is reliability.
We only install certified parts and equipments which are made by well known manufacturers. For control functions we mostly use Siemens products, for protection and switching appliances we use EATON, Schneider and Siemens products and our accessories are mostly made by Weidmüller, WAGO, Rittal, Omron and Datcon. Of course we are also open to cooperate with different suppliers if required.
Our program development activity includes creation of control software and applications for PLC based control systems; developing and programming supervisory, control, and data acquisition (SCADA) systems as well as making human-machine interface applications (e.g. for operator panels, PC).
Our professionals rely on their own decennial experience when developing the operation and structural concept, and working out algorithms.
According to the requirements and possibilities we develop modular structures to help further expansions.
We use the latest developing systems (ex.: Siemens Step7 Professional, S7 MicroWin, Teleservice, ProTool/Pro, WinCC, Citect, C++ Builder stb.).
The completed programs go through a detailed and careful pre- and on-site testing. After putting in operation the final software are given to our client including comments in a full form to make repairs and fault diagnosis easier.
Our company constructs process control systems and cabinets from quality parts according to the valid European and national standards, and according to our costumer's requirements. After finishing the installation and cabling works we make and document the needed revisions.
Our partners and subcontractors cost-effective and professional work is guaranteed by our partnership that has been successfully operating for years by now.
Our colleagues have many years of experience in fault diagnosis and recovery of PLC based or other control systems.
We undertake electrical and automation-oriented repair and maintenance works in occasional or contracted construction.
Photos of our control panels and softwares

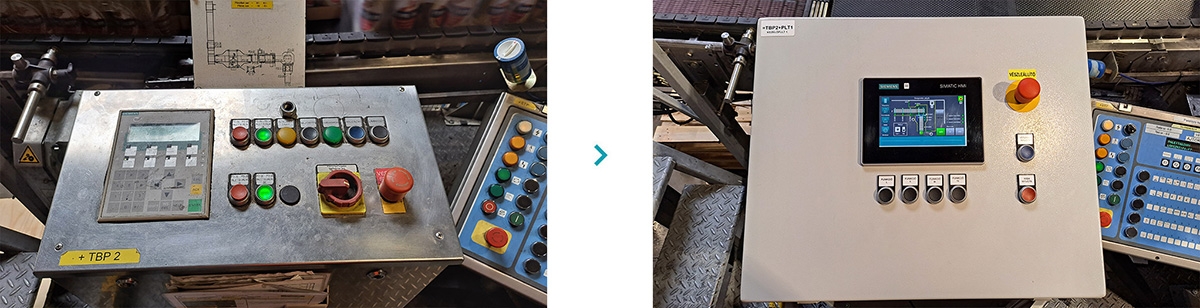

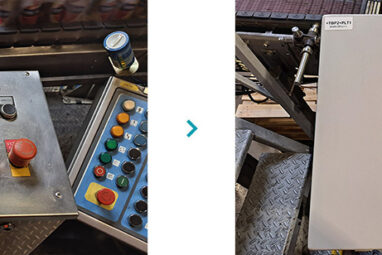

Pictures of renewal works made by our company
Products
Own-developed and manufactured in series microcontrollers with target controllers with full CE documentation.
There are hundreds of copies in operation of both of these electronics.
KELEMAT PB
proofing cabinet controller
The appliance is used to control proofing cabinets operating in bakeries.
Unitronics Jazz-based device handles proofing programs; has built-in power supply, temperature measurements, power outputs, and liquid level switching.
- Power Supply of Unitronics JAZZ PLC and matching of I / O (8 DO, 1 DI, 3AI)
- DC24V 1.5A Power Supply
- 3 piece of relay output 230V / 6A (fan, compressor, heating)
- 1 piece of 230V / 6A semiconductor output (heating)
- 4 piece of 24VDC semiconductor outputs (fans, valves)
- 2 piece of 4-20mA inputs (temperature, humidity)
- 1 piece of Pt100 / 0-10V converter (-50 ° C ... + 150 ° C)
- 1 piece of Conductive Level Switch Converter
More
HD+
oven controller
The appliance is used to control electric ovens in bakery shops. It handles baking programs, it has temperature measurement inputs, power outputs, wired and wireless communication capability, and memory card slots.
- 1 piece of oven heating control (230V / 20A; Wago pull spring coupling; zero shift switching)
- 1 piece of fan control output with rotational direction change (230V / 1A)
- 1 piece of water pump control output (230V / 1A; disconnectable terminals connection with screws)
- 1 piece of oven light control output (230V / 1A; disconnectable terminals connection with screws)
- 2 piece of aux control outputs (230V / 1A; Faston connector)
- 1 piece of beep signal (piezo buzzer)
- 1 door switch input (NC contact, disconnectable terminals connection with screws)
- 1 Pt1000 oven thermometer input (-20 ° C to + 300 ° C; disconnectable terminals connection with screws)
- 1 Kyt81 Thermometer Input (-20 ° C to +100 ° C; disconnectable terminals connection with screws)
- 1 SSR control output (PID control option, disconnectable terminals connection with screws)
- USB port (parameterization, programming, diagnostics)
- SD card (logging)
- RTC (real-time battery-protected clock)
- Bluetooth interface (optional)
- Alphanumeric LED display with 2x3 characters
- 6 touch-sensitive (QTouch) user interfaces
- 99 program positions (3 baking phases per program: temperature, steam, time, 1 sowing temperature)
- timed switch-on (up to 1 week)
- PID oven temperature control (optionally connected to SSR)
- logging of baking programs on SD card
- internal diagnostic storage
More
1. Our main processes
- Our main processes controlled by our Quality Management System:
- Designing, manufacturing, producing and on-site assembling of the Industrial Process Control Systems.
- Maintenance and repair of industrial process control systems
- Distribution of electrical industrial products
2. Customer centered operation
The main source of our profit is customer satisfaction, so
our policies are tailored to customer focus.
- So, according to this:
- We are trying to get acquainted with our existing (and potential) customers' needs for our services.
- We strive to find a practical and cost-effective way to meet customer needs.
- We pay attention to customer demand and we improve our activities based on differences.
3. Contact with other regulations
The Quality Management System is designed to integrate
organically into our other regulations, thus providing
a tight unit for accounting and other systems.
4. Gradual development
Our company wants to be the most recognized in the field for long-term.
To do so, it has established a quality management regime that consists
of step-by-step measurably improved and developed elements. We strive to achieve this.
5. Practical implementation, commitment, recognition
We build up a system that is not just a theory in regulation, but
a rule that determines our everyday practice.
Our management takes the necessary steps for our quality policy to
be known and expects its' employees to identify with it.
G. GDPR
GAL Mérnöki Iroda Kft undertakes to ensure that any data management related to its activities complies with the current requirements.
Our latest Privacy Notice is available at the following link: *link*
C. Certificate
The certification registration number of our firm cerfified by the MartonCert Rendszertanúsító Kft., is: 10253819.
The certificate can be downloaded here: GAL Mérnöki Iroda Kft - 10253819
The certifiate is valid until April 29, 2028.
